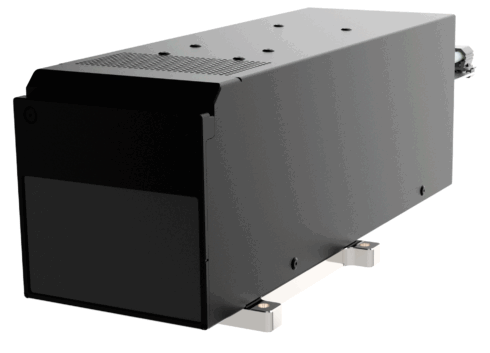

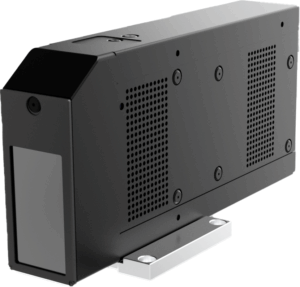

Camera-Head Line-up
280k (1 sensor), 840k (3 sensors), 2.2M (8 sensors) are available.
Please consult us about other camera head designs. Some custom designs are also available including vacuum compatible.

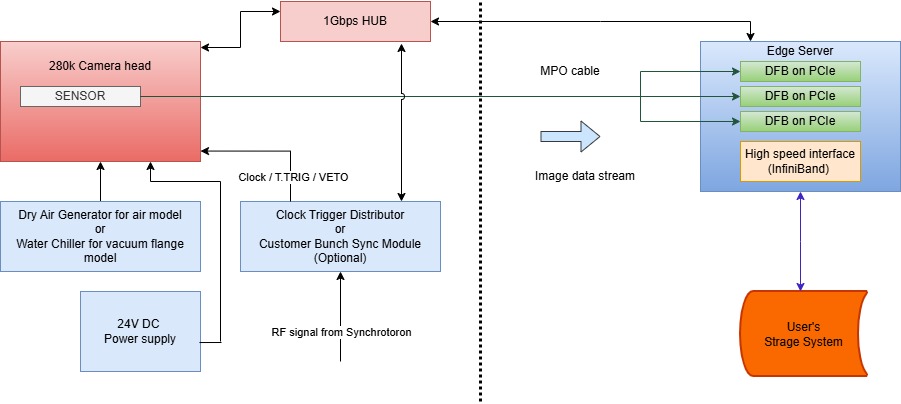

System Configuration for 280k
The CITIUS detector system consists of a Linux server with a camera head and three Data Framing Boards (DFBs). Below is an example configuration for a 280k system. In the 840k and 2.2M systems servers are added to accommodate the number of sensors.

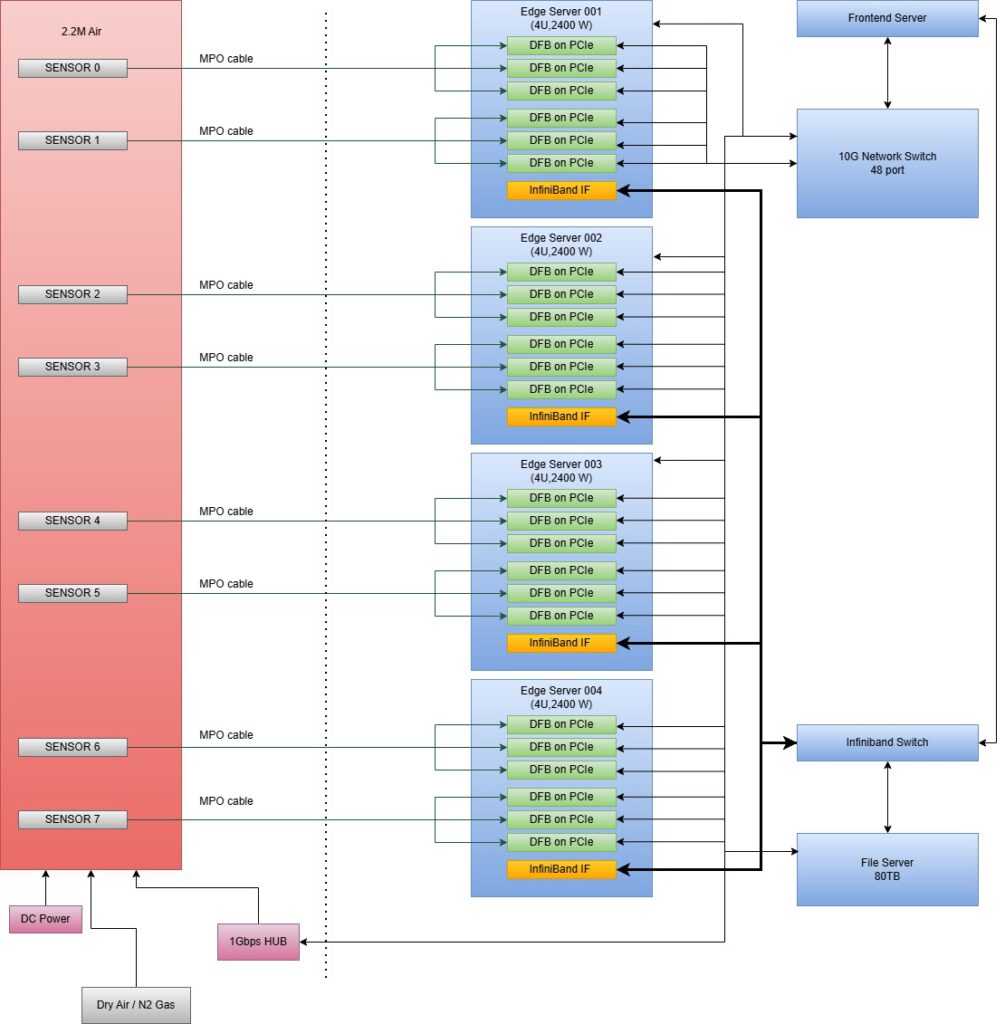

System Configuration for 2.2M
An example of the 2.2M system is shown below. With multiple Edge servers, the system increases in complexity requiring a 10G network switch, a Frontend server, an Infiniband switch and a File server.
